Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama Produk: | Pemotong Penggilingan Tungsten Carbide | Bahan: | Karbida, karbida tungsten |
|---|---|---|---|
| Seruling: | 2/4 | fitur: | memakai-resitance suprior. |
| Jenis Shank: | lurus | Pemakaian: | Baja Karbon. Cetakan Baja, stainless steel, tec |
| Cahaya Tinggi: | pemotong penggilingan tungsten karbida,pabrik akhir karbida persegi |
||

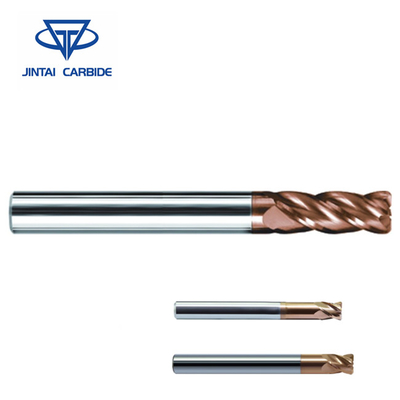

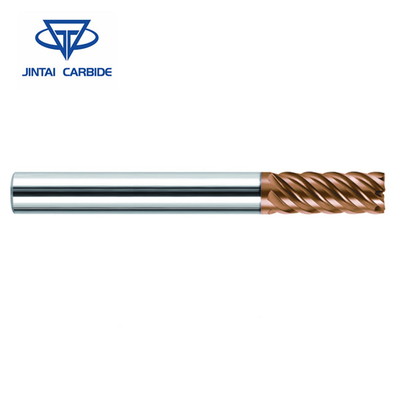

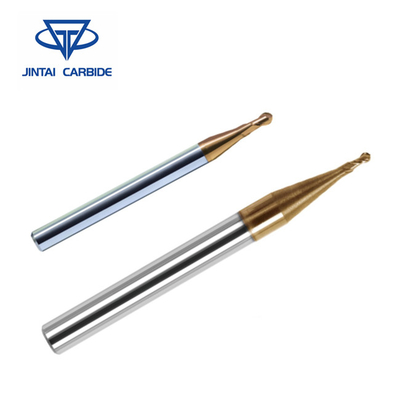

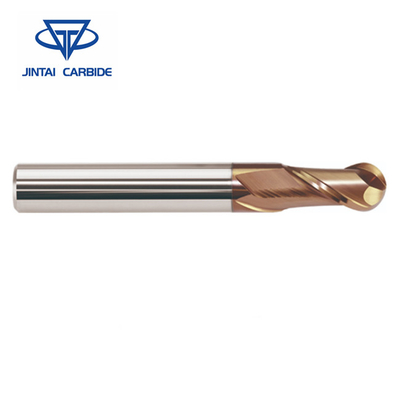

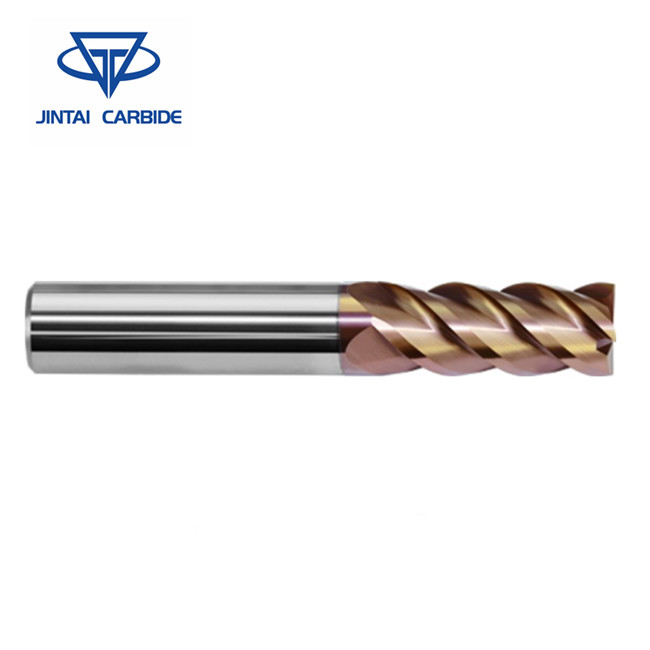

Pabrik Akhir Multi Flutes Karbida / Pemotong Penggilingan Tungsten Carbide
1. batang karbida Micrograin Super-Halus:
WC = 92,5%, Co = 12,5%, TRS> 4200N / mm2;Kekerasan> 92.5HRA, Ukuran butir: 0.5um;Qulaity daya tahan pakai dan benturan yang tinggi
2. Dibuat oleh mesin gerinda perkakas 5-AXIS terbaru di dunia, menjanjikan kualitas dan ketepatan pemotong.
3. Super TiAlN, kurangi koefisien gesekan, dan tingkatkan umur perkakas.
4. Setiap pabrik akhir diperiksa oleh mesin pengukur dan inspeksi Zoller.
5. Kami menerima spesifikasi sebagai kebutuhan Anda.
6. Benda Kerja: Baja karbon, baja paduan, baja tuang, baja perkakas, baja cetakan, baja heat-treament.Baja paduan aluminium, paduan non ferrous.
2 flute square end mill
| Tipe | Diameter pisau | Panjang bilah | Diameter betis | Panjang total |
| 1.0x3x4Dx50Lx2F | 1 | 3 | 4 | 50 |
| 1.5x4x4Dx50Lx2F | 1.5 | 4 | 4 | 50 |
| 2.0x6x4Dx50Lx2F | 2 | 6 | 4 | 50 |
| 2.5x8x4Dx50Lx2F | 2.5 | 8 | 4 | 50 |
| 3.0x3x4Dx50Lx2F | 3 | 8 | 4 | 50 |
| 3,5x10x4Dx50Lx2F | 3.5 | 10 | 4 | 50 |
| 4.0x11x4Dx50Lx2F | 4 | 11 | 4 | 50 |
| 3.0x8x6Dx50Lx2F | 3 | 8 | 6 | 50 |
| 3,5x10x6Dx50Lx2F | 3.5 | 10 | 6 | 50 |
| 4.0x11x6Dx50Lx2F | 4 | 11 | 6 | 50 |
| 4,5x13x6Dx50Lx2F | 4.5 | 13 | 6 | 50 |
| 5.0x13x6Dx50Lx2F | 5 | 13 | 6 | 50 |
| 5.5x13x6Dx50Lx2F | 5.5 | 13 | 6 | 50 |
| 6.0x15x6Dx50Lx2F | 6 | 15 | 6 | 50 |
| 7.0x16x8Dx60Lx2F | 7 | 16 | 8 | 60 |
| 8.0x20x8Dx60Lx2F | 8 | 20 | 8 | 60 |
| 9x20x10Dx75Lx2F | 9 | 20 | 10 | 75 |
| 10x25x10Dx75Lx2F | 10 | 25 | 10 | 75 |
| 11x25x12Dx75Lx2F | 11 | 25 | 12 | 75 |
| 12x30x12Dx75Lx2F | 12 | 30 | 12 | 75 |
| 14x35x14Dx100Lx2F | 14 | 35 | 14 | 100 |
| 16x40x16Dx100Lx2F | 16 | 40 | 16 | 100 |
| 18x45x18Dx100Lx2F | 18 | 40 | 18 | 100 |
| 20x45x20Dx100Lx2F | 20 | 45 | 20 | 100 |
3 flute square end mill
| Tipe | Diameter pisau | Panjang bilah | Diameter betis | Panjang total |
| 1.0x3x4Dx50Lx3F | 1 | 3 | 4 | 50 |
| 1.5x4x4Dx50Lx3F | 1.5 | 4 | 4 | 50 |
| 2.0x6x4Dx50Lx3F | 2 | 6 | 4 | 50 |
| 2.5x8x4Dx50Lx3F | 2.5 | 8 | 4 | 50 |
| 3.0x3x4Dx50Lx3F | 3 | 8 | 4 | 50 |
| 3,5x10x4Dx50Lx3F | 3.5 | 10 | 4 | 50 |
| 4.0x11x4Dx50Lx3F | 4 | 11 | 4 | 50 |
| 3.0x8x6Dx50Lx3F | 3 | 8 | 6 | 50 |
| 3,5x10x6Dx50Lx3F | 3.5 | 10 | 6 | 50 |
| 4.0x11x6Dx50Lx3F | 4 | 11 | 6 | 50 |
| 4,5x13x6Dx50Lx3F | 4.5 | 13 | 6 | 50 |
| 5.0x13x6Dx50Lx3F | 5 | 13 | 6 | 50 |
| 5.5x13x6Dx50Lx3F | 5.5 | 13 | 6 | 50 |
| 6.0x15x6Dx50Lx3F | 6 | 15 | 6 | 50 |
| 7.0x16x8Dx60Lx3F | 7 | 16 | 8 | 60 |
| 8.0x20x8Dx60Lx3F | 8 | 20 | 8 | 60 |
| 9x20x10Dx75Lx3F | 9 | 20 | 10 | 75 |
| 10x25x10Dx75Lx3F | 10 | 25 | 10 | 75 |
| 11x25x12Dx75Lx3F | 11 | 25 | 12 | 75 |
| 12x30x12Dx75Lx3F | 12 | 30 | 12 | 75 |
| 14x35x14Dx100Lx3F | 14 | 35 | 14 | 100 |
| 16x40x16Dx100Lx3F | 16 | 40 | 16 | 100 |
| 18x45x18Dx100Lx3F | 18 | 40 | 18 | 100 |
| 20x45x20Dx100Lx3F | 20 | 45 | 20 | 100 |
4 flute square end mill
| Tipe | Diameter pisau | Panjang bilah | Diameter betis | Panjang total |
| 1.0x3x4Dx50Lx4F | 1 | 3 | 4 | 50 |
| 1.5x4x4Dx50Lx4F | 1.5 | 4 | 4 | 50 |
| 2.0x6x4Dx50Lx4F | 2 | 6 | 4 | 50 |
| 2.5x8x4Dx50Lx4F | 2.5 | 8 | 4 | 50 |
| 3.0x3x4Dx50Lx4F | 3 | 8 | 4 | 50 |
| 3.5x10x4Dx50Lx4F | 3.5 | 10 | 4 | 50 |
| 4.0x11x4Dx50Lx4F | 4 | 11 | 4 | 50 |
| 3.0x8x6Dx50Lx4F | 3 | 8 | 6 | 50 |
| 3.5x10x6Dx50Lx4F | 3.5 | 10 | 6 | 50 |
| 4.0x11x6Dx50Lx4F | 4 | 11 | 6 | 50 |
| 4,5x13x6Dx50Lx4F | 4.5 | 13 | 6 | 50 |
| 5.0x13x6Dx50Lx4F | 5 | 13 | 6 | 50 |
| 5.5x13x6Dx50Lx4F | 5.5 | 13 | 6 | 50 |
| 6.0x15x6Dx50Lx4F | 6 | 15 | 6 | 50 |
| 7.0x16x8Dx60Lx4F | 7 | 16 | 8 | 60 |
| 8.0x20x8Dx60Lx4F | 8 | 20 | 8 | 60 |
| 9x20x10Dx75Lx4F | 9 | 20 | 10 | 75 |
| 10x25x10Dx75Lx4F | 10 | 25 | 10 | 75 |
| 11x25x12Dx75Lx4F | 11 | 25 | 12 | 75 |
| 12x30x12Dx75Lx4F | 12 | 30 | 12 | 75 |
| 14x35x14Dx100Lx4F | 14 | 35 | 14 | 100 |
| 16x40x16Dx100Lx4F | 16 | 40 | 16 | 100 |
| 18x45x18Dx100Lx4F | 18 | 40 | 18 | 100 |
| 20x45x20Dx100Lx4F | 20 | 45 | 20 | 100 |
Aplikasi
1. Cocok untuk Tembaga, Besi Cor, Baja Karbon, Baja Perkakas, Baja Cetakan, Baja Mati, Baja Tahan Karat, Plastik, Akrilik, dll.
2. Diterapkan untuk Dirgantara, transportasi, peralatan medis, manufaktur militer, pengembangan cetakan, peralatan dan instrumen, dll.
