Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama Produk: | HRC60 Solid Tungsten Carbide End Mill Jenis Milling Cutter 4 Seruling | Bahan: | Karbida, karbida tungsten |
|---|---|---|---|
| Seruling: | 2/3/4 | Sudut Spiral: | 30 derajat |
| Jenis mesin: | Mesin Penggilingan | Pemakaian: | Pengerjaan ukiran kayu, dll |
| Cahaya Tinggi: | pemotong penggilingan tungsten karbida,pabrik akhir karbida persegi |
||

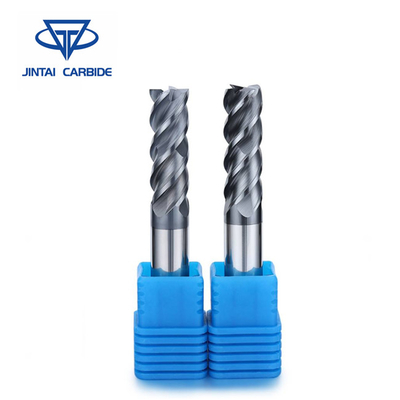

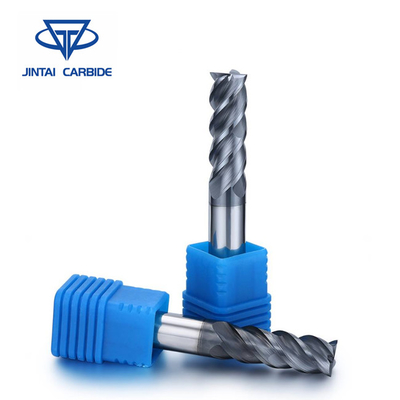

HRC60 Solid Tungsten Carbide End Mill Jenis Pemotong Penggilingan 4 Seruling
Aplikasi
1. Cocok untuk Tembaga, Besi Cor, Baja Karbon, Baja Perkakas, Baja Cetakan, Baja Mati, Baja Tahan Karat, Plastik, Akrilik, dll.
2. Diterapkan untuk Dirgantara, transportasi, peralatan medis, manufaktur militer, pengembangan cetakan, peralatan dan instrumen, dll
Fitur
1. Permukaan Yang Baik
2. Presisi Tinggi
Spesifikasi
HRC 60 pabrik akhir karbida padat
Diameter bilah berkisar dari 0,5 mm hingga 10 mm, sudut spiral 30 derajat, kekerasan HRC 60.
Tungsten karbida halus, WC = 90%, CO = 10%, TRC> 3800N / ㎡, ideal untuk baja karbon, baja paduan dan bahan cetakan besi.
HRC 60 2 flute, 3 flute dan 4 flute square end mill
Penggiling akhir karbida persegi 2 seruling
| Tipe | Diameter pisau | Panjang bilah | Diameter betis | Panjang total |
| 1.0x3x4Dx50Lx2F | 1 | 3 | 4 | 50 |
| 1.5x4x4Dx50Lx2F | 1.5 | 4 | 4 | 50 |
| 2.0x6x4Dx50Lx2F | 2 | 6 | 4 | 50 |
| 2.5x8x4Dx50Lx2F | 2.5 | 8 | 4 | 50 |
| 3.0x3x4Dx50Lx2F | 3 | 8 | 4 | 50 |
| 3,5x10x4Dx50Lx2F | 3.5 | 10 | 4 | 50 |
| 4.0x11x4Dx50Lx2F | 4 | 11 | 4 | 50 |
| 3.0x8x6Dx50Lx2F | 3 | 8 | 6 | 50 |
| 3,5x10x6Dx50Lx2F | 3.5 | 10 | 6 | 50 |
| 4.0x11x6Dx50Lx2F | 4 | 11 | 6 | 50 |
| 4,5x13x6Dx50Lx2F | 4.5 | 13 | 6 | 50 |
| 5.0x13x6Dx50Lx2F | 5 | 13 | 6 | 50 |
| 5.5x13x6Dx50Lx2F | 5.5 | 13 | 6 | 50 |
| 6.0x15x6Dx50Lx2F | 6 | 15 | 6 | 50 |
| 7.0x16x8Dx60Lx2F | 7 | 16 | 8 | 60 |
| 8.0x20x8Dx60Lx2F | 8 | 20 | 8 | 60 |
| 9x20x10Dx75Lx2F | 9 | 20 | 10 | 75 |
| 10x25x10Dx75Lx2F | 10 | 25 | 10 | 75 |
| 11x25x12Dx75Lx2F | 11 | 25 | 12 | 75 |
| 12x30x12Dx75Lx2F | 12 | 30 | 12 | 75 |
| 14x35x14Dx100Lx2F | 14 | 35 | 14 | 100 |
| 16x40x16Dx100Lx2F | 16 | 40 | 16 | 100 |
| 18x45x18Dx100Lx2F | 18 | 40 | 18 | 100 |
| 20x45x20Dx100Lx2F | 20 | 45 | 20 | 100 |
Penggiling akhir karbida persegi 3 seruling
| Tipe | Diameter pisau | Panjang bilah | Diameter betis | Panjang total |
| 1.0x3x4Dx50Lx3F | 1 | 3 | 4 | 50 |
| 1.5x4x4Dx50Lx3F | 1.5 | 4 | 4 | 50 |
| 2.0x6x4Dx50Lx3F | 2 | 6 | 4 | 50 |
| 2.5x8x4Dx50Lx3F | 2.5 | 8 | 4 | 50 |
| 3.0x3x4Dx50Lx3F | 3 | 8 | 4 | 50 |
| 3,5x10x4Dx50Lx3F | 3.5 | 10 | 4 | 50 |
| 4.0x11x4Dx50Lx3F | 4 | 11 | 4 | 50 |
| 3.0x8x6Dx50Lx3F | 3 | 8 | 6 | 50 |
| 3,5x10x6Dx50Lx3F | 3.5 | 10 | 6 | 50 |
| 4.0x11x6Dx50Lx3F | 4 | 11 | 6 | 50 |
| 4,5x13x6Dx50Lx3F | 4.5 | 13 | 6 | 50 |
| 5.0x13x6Dx50Lx3F | 5 | 13 | 6 | 50 |
| 5.5x13x6Dx50Lx3F | 5.5 | 13 | 6 | 50 |
| 6.0x15x6Dx50Lx3F | 6 | 15 | 6 | 50 |
| 7.0x16x8Dx60Lx3F | 7 | 16 | 8 | 60 |
| 8.0x20x8Dx60Lx3F | 8 | 20 | 8 | 60 |
| 9x20x10Dx75Lx3F | 9 | 20 | 10 | 75 |
| 10x25x10Dx75Lx3F | 10 | 25 | 10 | 75 |
| 11x25x12Dx75Lx3F | 11 | 25 | 12 | 75 |
| 12x30x12Dx75Lx3F | 12 | 30 | 12 | 75 |
| 14x35x14Dx100Lx3F | 14 | 35 | 14 | 100 |
| 16x40x16Dx100Lx3F | 16 | 40 | 16 | 100 |
| 18x45x18Dx100Lx3F | 18 | 40 | 18 | 100 |
| 20x45x20Dx100Lx3F | 20 | 45 | 20 | 100 |
4 seruling persegi penggiling akhir karbida
| Tipe | Diameter pisau | Panjang bilah | Diameter betis | Panjang total |
| 1.0x3x4Dx50Lx4F | 1 | 3 | 4 | 50 |
| 1.5x4x4Dx50Lx4F | 1.5 | 4 | 4 | 50 |
| 2.0x6x4Dx50Lx4F | 2 | 6 | 4 | 50 |
| 2.5x8x4Dx50Lx4F | 2.5 | 8 | 4 | 50 |
| 3.0x3x4Dx50Lx4F | 3 | 8 | 4 | 50 |
| 3.5x10x4Dx50Lx4F | 3.5 | 10 | 4 | 50 |
| 4.0x11x4Dx50Lx4F | 4 | 11 | 4 | 50 |
| 3.0x8x6Dx50Lx4F | 3 | 8 | 6 | 50 |
| 3.5x10x6Dx50Lx4F | 3.5 | 10 | 6 | 50 |
| 4.0x11x6Dx50Lx4F | 4 | 11 | 6 | 50 |
| 4,5x13x6Dx50Lx4F | 4.5 | 13 | 6 | 50 |
| 5.0x13x6Dx50Lx4F | 5 | 13 | 6 | 50 |
| 5.5x13x6Dx50Lx4F | 5.5 | 13 | 6 | 50 |
| 6.0x15x6Dx50Lx4F | 6 | 15 | 6 | 50 |
| 7.0x16x8Dx60Lx4F | 7 | 16 | 8 | 60 |
| 8.0x20x8Dx60Lx4F | 8 | 20 | 8 | 60 |
| 9x20x10Dx75Lx4F | 9 | 20 | 10 | 75 |
| 10x25x10Dx75Lx4F | 10 | 25 | 10 | 75 |
| 11x25x12Dx75Lx4F | 11 | 25 | 12 | 75 |
| 12x30x12Dx75Lx4F | 12 | 30 | 12 | 75 |
| 14x35x14Dx100Lx4F | 14 | 35 | 14 | 100 |
| 16x40x16Dx100Lx4F | 16 | 40 | 16 | 100 |
| 18x45x18Dx100Lx4F | 18 | 40 | 18 | 100 |
| 20x45x20Dx100Lx4F | 20 | 45 | 20 | 100 |
Pabrik ujung persegi dengan diameter dan panjang blade lainnya dimungkinkan sesuai kebutuhan pelanggan.
